Dell Optiplex 3000 Thin Client

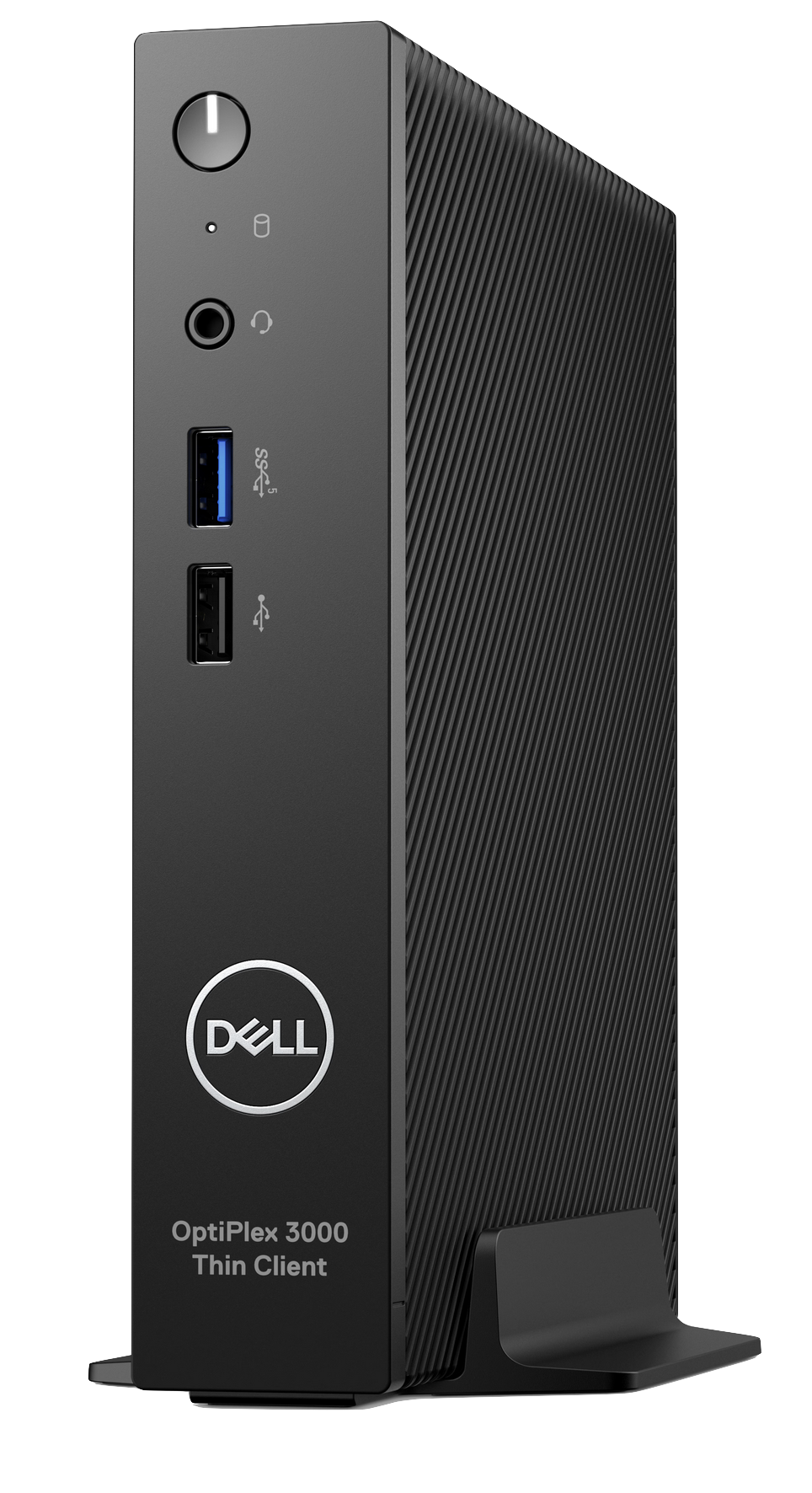

front

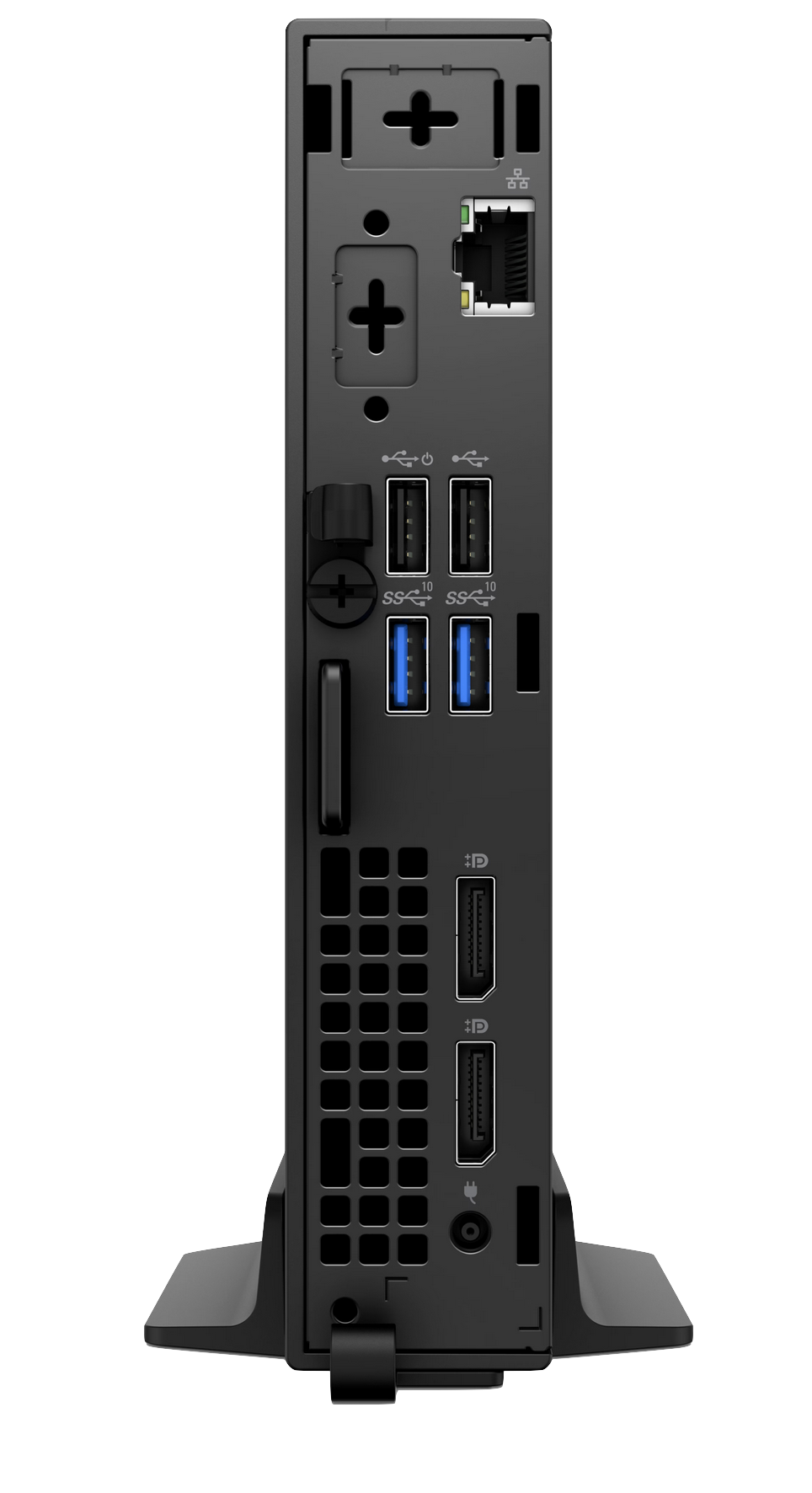

back

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
CPU:
  - Intel Celeron N5105
  - 4 Cores, 4 Threads
  - 10w TDP
  - [Full specs](https://www.intel.com/content/www/us/en/products/sku/212328/intel-celeron-processor-n5105-4m-cache-up-to-2-90-ghz/specifications.html)
Memory:
  - 8GB DDR4 SDRAM
  - 2933MHz SO-DIMM
  - 1 open slot
Drive:
  - 256GB BC711 NVMe SK hynix
  - M.2 Nvme
GPU:
  - UHD Graphics
Audio Chip:
  - Realtek ALC3204
Network Chip:
  - enp1s0
Un3tiL@b5!

Bios Options

Admin PW

The machine ships using Dells default password Fireport, which should be changed

Integrated Devices

  • Disable the Microphone
  • Enable USB Boot Support
  • Perhaps we can disable a few of the usb ports that wont be in use (TBD)

Storage

  • Enable SMART Reporting

Display

  • No Changes

Connection

  • Disable WLAN
  • Disable Bluetooth

Power

  • Set AC Recovery to "Power On"
  • Enable 'Block Sleep'

Security

  • Disable Absolute, not permanently though

Passwords

  • Change the admin password to Un3tiL@b5!

Update,Recovery

  • No Changes

System Management

  • Generate an Asset tag and apply it to the system using BitWarden's passphrase generator with a length of 4 words. Example: shrimp-empower-plaything-sporting
  • Add the asset tag to the inventory readme

Keyboard

  • No Changes

Pre-Boot Behavior

  • Set Warnings and Errors to Continue on Warnings and Errors

Virtualization Support

  • No Changes

Performance

  • No Changes (unless we have issues with lag then we can disable speed-step and set it to full power)

System Logs

  • No Change
